Specializing in the production of flat welded flanges, non-standard flanges, profiled flat welded flanges

FOB Reference Price:Get Latest Price
$0.50 - $15.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
JHR
Model Number:
Flange007
Size:
1/2"-48"
Material:
Carbon Steel
Standard:
ISO
Name:
Slip on Raised face flange
Process:
Forging-Ring
Application:
Petroleum/Chemical industry
Technics:
Forged Casting
Packing:
Plywood pallet/case, Steel pallet or as customers'requested
Connection:
Weldimg
Type:
Round Flange
Product name:
Forged Plate Flange
Certificate:
ISO14001
Surface treatment:
Painting
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
100000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Pallets. As customer's requirement.
Port
Xingang
Product Description

JHR operating flange types:
•Carbon steel flange, neck flange, flange plate, flange, flange, flange forging, American Standard flange, welded flange plate, flange, flange.
According to the material of the material:
•Carbon steel flanges, Q235 flanges, 20# flanges, 16Mn flanges, alloy flanges, steel flanges, stainless steel flanges, 304L flanges, 316 flanges, 316L flanges, 15CrMo, P91, P22,10CrMo910 flanges, Q235 flanges, Q235B flanges.
According to the type:
•Flat - plate flange, flange, blind flange, blind plate, sliding sleeve flange, threaded flange, butt welding flange hubbed socket welding flange hubbed flange, hubbed threaded flange welding plate flange, flange plate, convex flange, marine flange, flange protruding, socket welding flange wire connecting flange, flange, welding, high diameter flange.
According to the standard:
• The national standard GB/T9115-2000, the standard of machinery, the Ministry of chemical industry standard JB82-94 HGJ50 ~ 53-91, HG20595-97HG20617-97 standard, Ministry of electric power GD0508 ~ 0509, American Standard B16.5, Japanese standard ASME/ANSI
JIS/KS (5K, 10K, 16K, 20K), German standard DIN, special-shaped flange, angled flanges, GB/T9112-2000 flanges, GB9113.1-2000 flanges
According to the pressure division:
•High pressure flanges, 10 kilograms flanges, 16 kilograms flanges, PN1.0 flanges, PN1.6 flanges, and PN2.5 flanges
Flange material: 20#, A105, Q235A, 12Cr1MoV, 16MnR, 15CrMo, 18-8, 321, 304, 304L, 316, 316L and so on.
Pipe flanges and pipe connections can be divided into five basic types: flange, threaded flange, socket welding flange, loose flange. There are Many kinds of sealing faces for flanges. They usually have convex surfaces (RF), concave surfaces (FM), concavo convex surfaces (MFM), mortise and grooved surfaces (TG), full plane (FF), and ring connection surfaces (RJ).
Flat steel flange
Welding steel flanges for carbon steel pipe for the nominal pressure of not more than 2.5MPa connection, flange sealing surface can be made smooth, bump and tenon slot three. Flat welding flange smooth application of the largest, for mild medium conditions
Under the circumstances, such as low pressure non purification compressed air, low pressure circulating water, its advantage is that the price is cheaper.
Welding steel flanges
Butt welded steel flanges are used for butt welding of flanges and pipes. Its structure is reasonable, its strength and stiffness are large, and it can withstand high temperature, high pressure, repeated bending and temperature fluctuation. Its sealing is reliable. The butt welding flange with a nominal pressure of 0.25 ~ 2.5MPa is Concave and convex sealing surface
Socket welding flange
Socket welding flange used in PN is less than 10.0MPa, DN is less than or equal to 40 in the pipeline.
Loose flange
The loose sleeve flange is commonly known as the live sleeve flange, the live sleeve flange of the welding ring, the flanged live sleeve flange and the butt sleeve flange.
Commonly used in medium temperature and pressure are not high and medium corrosivity is strong. When the corrosive medium is strong, the part of flange contact medium (flanging short section) is corrosion resistant high-grade material, such as stainless steel and other materials, while the outer part is clamped with low grade materials such as carbon steel flange ring to achieve sealing.
The overall flange
The whole flange is often made of flanges with equipment, pipes, fittings, valves and so on. This type is often used on equipment and valves.



Inside nomianal diameter DN

Pipe outer diameter AFlange thickness C(mm) Flange inside diameterBevel width(mm) Flange theordtical weight(kg)
A(mm)B(mm)A(mm)B(mm)
1017.21414181540.16
1521.31814221940.68
2026.9251627.52640.94
2533.7321634.53351.12
3242.4381843.53951.86
4048.3451849.54652.12
5060.3572061.55952.77
6576.1762277.57863.46
8088.9892490.59164.31
100114.31082611611066.29
125139.713328141.513568.50
150168.315930170.5161610.8
200219.121932221.5222814.2
25027327335276.52761020.2
300323.932538327.53281126.5
350355.637742359.53811237.6
400406.4426464114301250.7
450457480504624851257.8
50050853056513.55351276.2
60061063068616.563612117

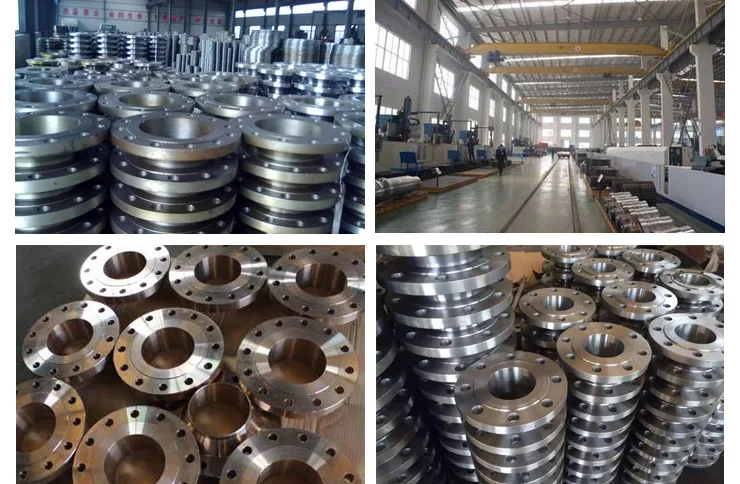

Product Show
